Project location: Jiangsu·Wuxi
Product name: Black Brick
Capacity: 93.8kW
Installed area: 1000㎡
Styling advantages:

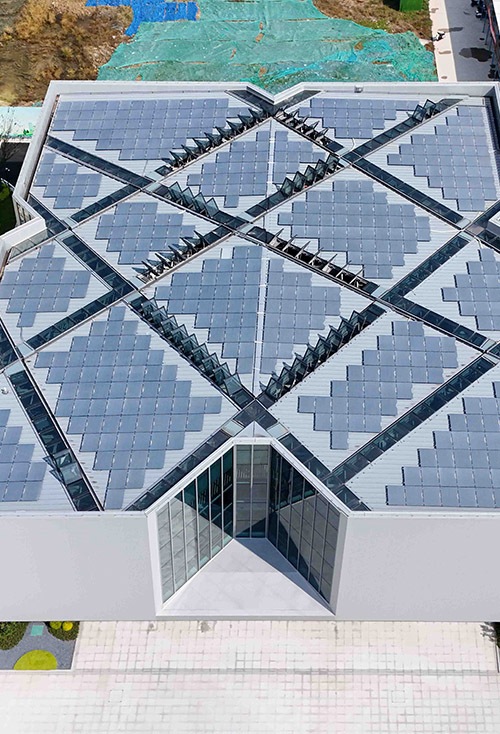

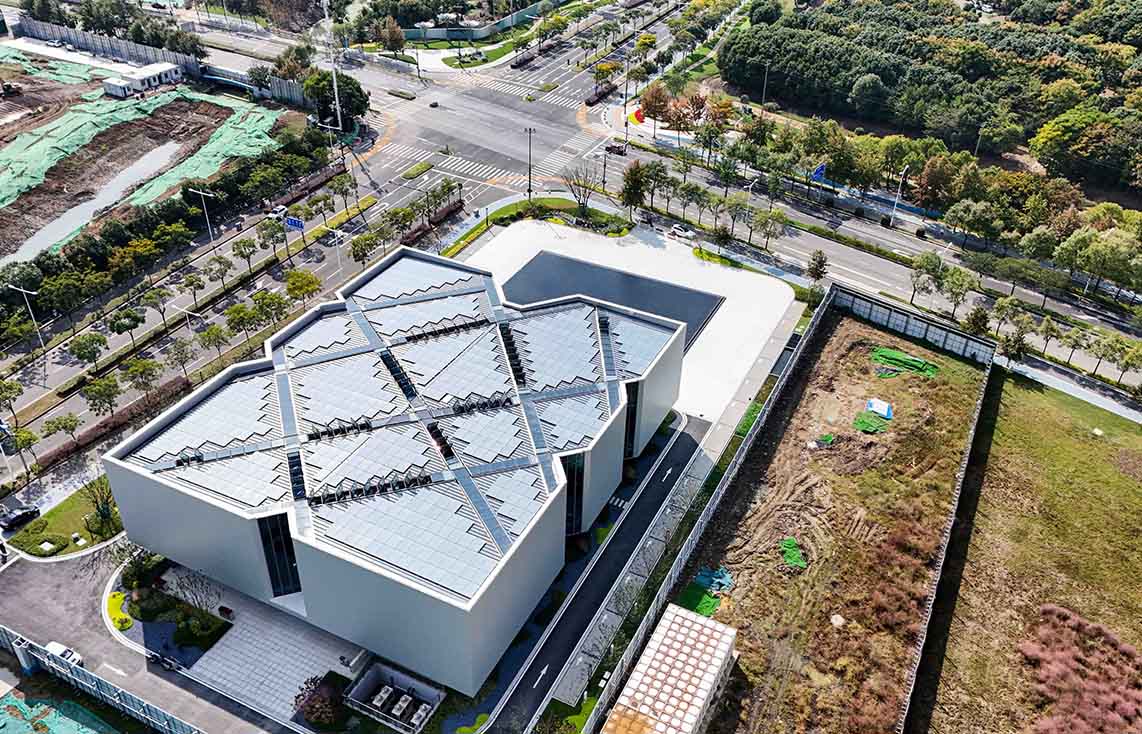

Wuxi’s first zero-energy consumption middle school demonstration project, promoting green and low-carbon development of the campus. Qingyan Road Middle School Cultural and Sports Center is located on the southeast side of the intersection of Qingyan Road and Qingshu Road. The school actively responds to the construction and development requirements under the "double carbon" goal and builds a zero-energy middle school project. The imitation aluminum plate photovoltaic green building materials Black Brick series are installed on the roof of the building. In addition to meeting the aesthetic requirements of the building, it can also reduce the carbon emissions caused by the building to the greatest extent through the green electricity brought by photovoltaic power generation. Cooperating with the energy storage system to reduce the peak charge load and equipped with smart microgrids, the power system is made more portable and efficient, helping Qingyan Road Middle School embark on the path of eco-friendly zero energy consumption.
Energy-saving effect: The building is equipped with a total of 93.8kW photovoltaic green building materials. According to the daily radiation and power generation efficiency, it can generate 261 degrees of electricity every day, providing 8 hours (day) for the 7kW electronic information system room, 5kW lighting system, and 8kW new air-conditioning system. ) Green electricity; it provides 95,400 kilowatt-hours of green electricity to buildings every year, reducing 38.16 tons of greenhouse gases produced by coal combustion, which is equivalent to reducing carbon dioxide emissions by 31.60 tons and reducing sulfur dioxide by 1.14 tons.
